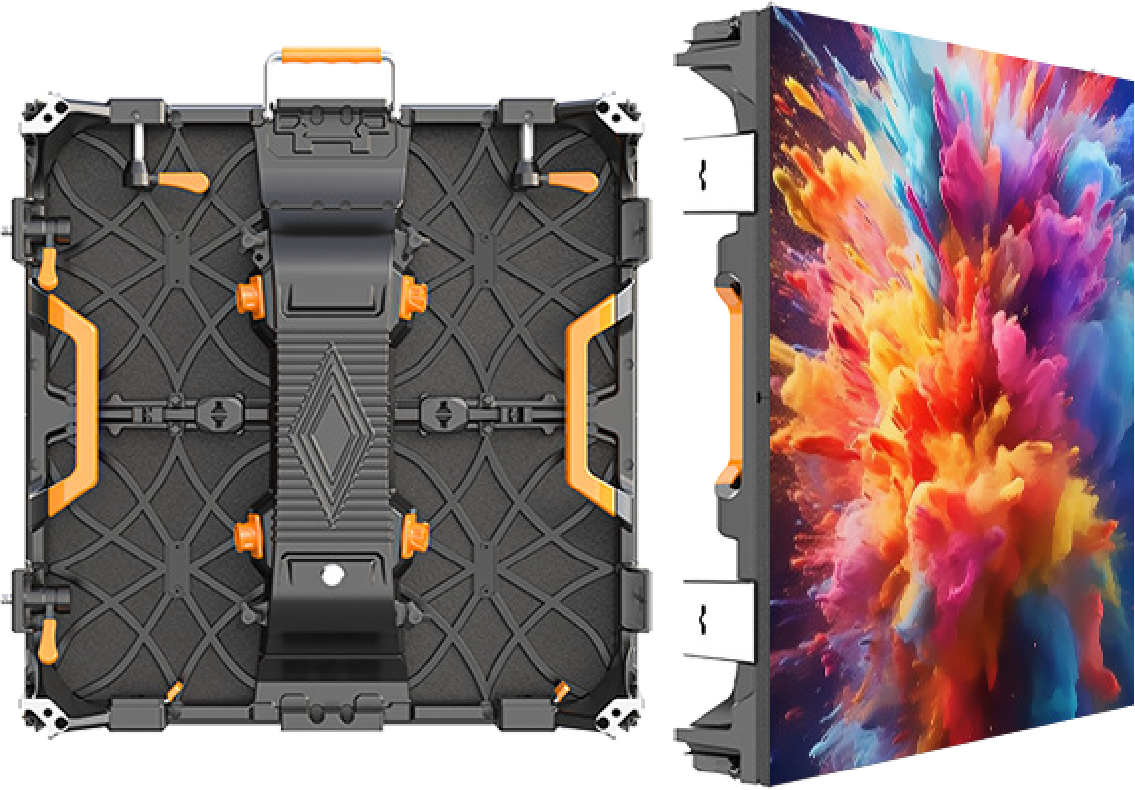

EVENT - Main

Synergy EVENT

Outdoor/Indoor Video Cabinet - Fine Pitch
Front & Rear Service - Low Power

Cabinet Sizes Available:
500 mm x 500 mm

Pitch Sizes Available:
P2.6 P2.97 P3.91

Order (MOQ): 1

Contact Now
Features

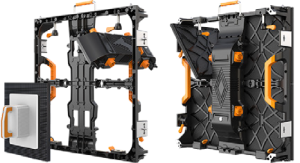

 Front and Rear Maintenance

  • The modules are serviceable from the front and rear of the cabinet. This gives you a certain flexibility to installation as well as ease of ongoing maintenance

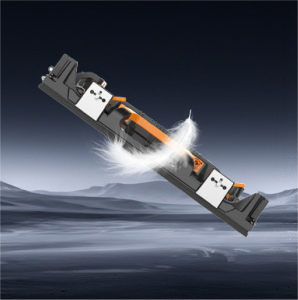

Lightweight and Slim

  • The aluminium cabinets are extremely light, weighing only 7.5Kg
    This means the cabinets are easy to assemble/disassemble and operate for one person at an event

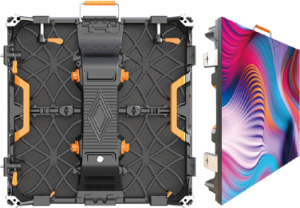

Cabinets

The standard cabinet sizes are:

  • 500 x 500mm
  • The cabinets are of aluminium construction with die-cast aluminium module design.
  • Dual-layer power supply for heat dissipation

Better Image Quality

  • High Refresh Rate - Giving a much sharper image
  • High Grayscale - Better contrast within the image
  • High Brightness - Better performance

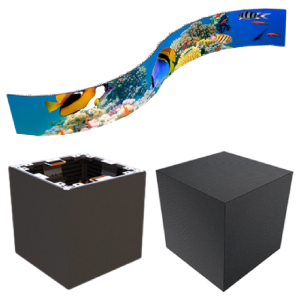

Multiple Uses

  • With the flexibility of this screen, you can achieve; curved screens, a column screen and a cube screen

Never Black Screen

  • When you have a power failure, a power cable failure, the adjacent cabinets will share the output current to make the screen display appear as normal
Specification

Product Specification - 500 x 500mm Cabinet

Specification – Indoor 2.6mm

  • LED Lamp: SMD1515

  • Density: 147,456 dots/m²

  • Brightness: ≥700 nits

  • Use/IP Rating: Indoor

  • Cabinet Material: Aluminium Profile

  • Refresh Ratio: 3840 Hz

  • IC Driving: 1/32

  • Cabinet Weight: 7.5 kg

  • Module Size: 250 × 250 × 19 mm

  • Cabinet Size: 500 × 500 × 85 mm

  • Modules per Cabinet: 2 × 2

  • Cabinet Area: 0.25 m²

  • Module Resolution: 96 × 96 dots

  • Cabinet Resolution: 192 × 192 dots

  • Max Power: 500 W/m²

  • Average Power: 168 W/m²

  • Viewing Angle: H-140° / V-140°

  • Control Method: Synchronous / Asynchronous

  • Grayscale: 16 bit

  • Operating System: AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI

  • Working Humidity: 10% – 90%

  • Working Temperature: -20°C ~ +65°C

  • Lifespan: 100,000 hours

Specification – Indoor 2.97mm

  • LED Lamp: SMD2020

  • Density: 112,896 dots/m²

  • Brightness: ≥800 nits

  • Use/IP Rating: Indoor

  • Cabinet Material: Aluminium Profile

  • Refresh Ratio: 3840 Hz

  • IC Driving: 1/28

  • Cabinet Weight: 7.5 kg

  • Module Size: 250 × 250 × 19 mm

  • Cabinet Size: 500 × 500 × 85 mm

  • Modules per Cabinet: 2 × 2

  • Cabinet Area: 0.25 m²

  • Module Resolution: 84 × 84 dots

  • Cabinet Resolution: 168 × 168 dots

  • Max Power: 500 W/m²

  • Average Power: 168 W/m²

  • Viewing Angle: H-140° / V-140°

  • Control Method: Synchronous / Asynchronous

  • Grayscale: 16 bit

  • Operating System: AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI

  • Working Humidity: 10% – 90%

  • Working Temperature: -20°C ~ +65°C

  • Lifespan: 100,000 hours

Specification – Indoor 3.91mm

  • LED Lamp: SMD2020

  • Density: 65,536 dots/m²

  • Brightness: ≥800 nits

  • Use/IP Rating: Indoor

  • Cabinet Material: Aluminium Profile

  • Refresh Ratio: 3840 Hz

  • IC Driving: 1/28

  • Cabinet Weight: 7.5 kg

  • Module Size: 250 × 250 × 19 mm

  • Cabinet Size: 500 × 500 × 85 mm

  • Modules per Cabinet: 2 × 2

  • Cabinet Area: 0.25 m²

  • Module Resolution: 64 × 64 dots

  • Cabinet Resolution: 128 × 128 dots

  • Max Power: 500 W/m²

  • Average Power: 168 W/m²

  • Viewing Angle: H-140° / V-140°

  • Control Method: Synchronous / Asynchronous

  • Grayscale: 16 bit

  • Operating System: AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI

  • Working Humidity: 10% – 90%

  • Working Temperature: -20°C ~ +65°C

  • Lifespan: 100,000 hours

Specification – Outdoor 2.6mm

  • LED Lamp: SMD1415

  • Density: 147,456 dots/m²

  • Brightness: ≥4500 nits

  • Use/IP Rating: Outdoor IP65

  • Cabinet Material: Aluminium Profile

  • Refresh Ratio: 3840 Hz

  • IC Driving: 1/24

  • Cabinet Weight: 7.5 kg

  • Module Size: 250 × 250 × 19 mm

  • Cabinet Size: 500 × 500 × 85 mm

  • Modules per Cabinet: 2 × 2

  • Cabinet Area: 0.25 m²

  • Module Resolution: 96 × 96 dots

  • Cabinet Resolution: 192 × 192 dots

  • Max Power: 700 W/m²

  • Average Power: 235 W/m²

  • Viewing Angle: H-140° / V-140°

  • Control Method: Synchronous / Asynchronous

  • Grayscale: 16 bit

  • Operating System: AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI

  • Working Humidity: 10% – 90%

  • Working Temperature: -20°C ~ +65°C

  • Lifespan: 100,000 hours

Specification – Outdoor 2.97mm

  • LED Lamp: SMD1415

  • Density: 112,896 dots/m²

  • Brightness: ≥4500 nits

  • Use/IP Rating: Outdoor IP65

  • Cabinet Material: Aluminium Profile

  • Refresh Ratio: 3840 Hz

  • IC Driving: 1/21

  • Cabinet Weight: 7.5 kg

  • Module Size: 250 × 250 × 19 mm

  • Cabinet Size: 500 × 500 × 85 mm

  • Modules per Cabinet: 2 × 2

  • Cabinet Area: 0.25 m²

  • Module Resolution: 84 × 84 dots

  • Cabinet Resolution: 168 × 168 dots

  • Max Power: 700 W/m²

  • Average Power: 235 W/m²

  • Viewing Angle: H-140° / V-140°

  • Control Method: Synchronous / Asynchronous

  • Grayscale: 16 bit

  • Operating System: AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI

  • Working Humidity: 10% – 90%

  • Working Temperature: -20°C ~ +65°C

  • Lifespan: 100,000 hours

Specification – Outdoor 3.91mm

  • LED Lamp: SMD1921

  • Density: 65,536 dots/m²

  • Brightness: ≥4500 nits (up to 6000 nits)

  • Use/IP Rating: Outdoor IP65

  • Cabinet Material: Aluminium Profile

  • Refresh Ratio: 3840 Hz

  • IC Driving: 1/16 (18)

  • Cabinet Weight: 7.5 kg

  • Module Size: 250 × 250 × 19 mm

  • Cabinet Size: 500 × 500 × 85 mm

  • Modules per Cabinet: 2 × 2

  • Cabinet Area: 0.25 m²

  • Module Resolution: 64 × 64 dots

  • Cabinet Resolution: 128 × 128 dots

  • Max Power: 700 W/m²

  • Average Power: 235 W/m²

  • Viewing Angle: H-140° / V-140°

  • Control Method: Synchronous / Asynchronous

  • Grayscale: 16 bit

  • Operating System: AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI

  • Working Humidity: 10% – 90%

  • Working Temperature: -20°C ~ +65°C

  • Lifespan: 100,000 hours

Specifications are subject to change
