Synergy EFFECT

Indoor Video Screens - Refined, Architectural Finish

Sizes Available:
• 250 mm x 250mm - SMALL
• 500mm x 500mm - MEDIUM
• 500mm x 1000mm - LARGE

Order (MOQ): 1

Contact Now
Features

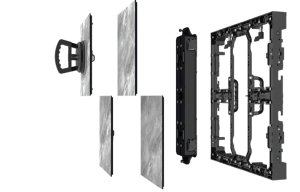

Front Maintenance

  • The LED cabinet can be easily maintained from the front, both the modules and the brainbox (the hub with power and receiving card within) can be removed using a suction cup to remove the LED modules, then the brainbox can be unscrewed from the framework

LED Screen

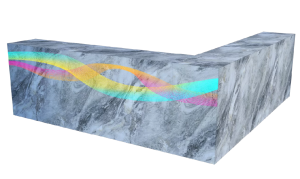

  • The LED video content can be seen through the EFFECT
    finish of the modules

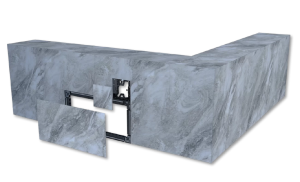

Modular Design

  • The cabinets and modules can be assembled in such a way that you can create various designs such as a desk/counter

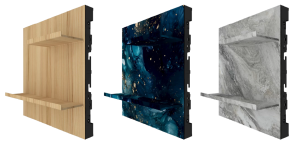

Tray Extension (Retail)

  • The tray extension is a projecting ledge or shelf built into the LED cabinet’s face, allowing physical display or retail use



Various Installation Methods

  • The EFFECT screens have multiple installation options. The screens can be wall-mounted on rails; they have the flexibility to be used in a framework to construct desking or counters, but they can also be installed on floor.
Specification

Specification – P1.25

  • Brightness: >3000 cd/m²

  • Viewing Distance (Minimum): >1.25 m

  • Pixel Density: 640,000 dots/m²

  • Refresh Rate: 1920 Hz – 3840 Hz

  • Viewing Angle: 160° (H) / 160° (V)

  • Contrast Ratio: 6000:1

  • Module Size: 250 × 250 mm

  • Cabinet Size: 500 × 500 × 55 mm

  • Environment: Front: IP65 / Rear: IP54

  • Voltage: AC 100 – 240V

  • Weight: 9.2 kg per panel

Specification – P1.56

  • Brightness: >3500 cd/m²

  • Viewing Distance (Minimum): >1.56 m

  • Pixel Density: 409,600 dots/m²

  • Refresh Rate: 1920 Hz – 3840 Hz

  • Viewing Angle: 160° (H) / 160° (V)

  • Contrast Ratio: 6000:1

  • Module Size: 250 × 250 mm

  • Cabinet Size: 500 × 500 × 55 mm

  • Environment: Front: IP65 / Rear: IP54

  • Voltage: AC 100 – 240V

  • Weight: 9.2 kg per panel

Specification – P1.95

  • Brightness: >3500 cd/m²

  • Viewing Distance (Minimum): >1.95 m

  • Pixel Density: 262,144 dots/m²

  • Refresh Rate: 1920 Hz – 3840 Hz

  • Viewing Angle: 160° (H) / 160° (V)

  • Contrast Ratio: 6000:1

  • Module Size: 250 × 250 mm

  • Cabinet Size: 500 × 500 × 55 mm

  • Environment: Front: IP65 / Rear: IP54

  • Voltage: AC 100 – 240V

  • Weight: 9.2 kg per panel

Specification – P2.6

  • Brightness: >3500 cd/m²

  • Viewing Distance (Minimum): >2.6 m

  • Pixel Density: 147,456 dots/m²

  • Refresh Rate: 1920 Hz – 3840 Hz

  • Viewing Angle: 160° (H) / 160° (V)

  • Contrast Ratio: 6000:1

  • Module Size: 250 × 250 mm

  • Cabinet Size: 500 × 500 × 55 mm

  • Environment: Front: IP65 / Rear: IP54

  • Voltage: AC 100 – 240V

  • Weight: 9.2 kg per panel

Specification – P2.97

  • Brightness: >3500 cd/m²

  • Viewing Distance (Minimum): >2.97 m

  • Pixel Density: 112,896 dots/m²

  • Refresh Rate: 1920 Hz – 3840 Hz

  • Viewing Angle: 160° (H) / 160° (V)

  • Contrast Ratio: 6000:1

  • Module Size: 250 × 250 mm

  • Cabinet Size: 500 × 500 × 55 mm

  • Environment: Front: IP65 / Rear: IP54

  • Voltage: AC 100 – 240V

  • Weight: 9.2 kg per panel

Specification – P3.9

  • Brightness: >5000 cd/m²

  • Viewing Distance (Minimum): >3.9 m

  • Pixel Density: 65,536 dots/m²

  • Refresh Rate: 1920 Hz – 3840 Hz

  • Viewing Angle: 160° (H) / 160° (V)

  • Contrast Ratio: 6000:1

  • Module Size: 250 × 250 mm

  • Cabinet Size: 500 × 500 × 55 mm

  • Environment: Front: IP65 / Rear: IP54

  • Voltage: AC 100 – 240V

  • Weight: 9.2 kg per panel

Specifications are subject to change
