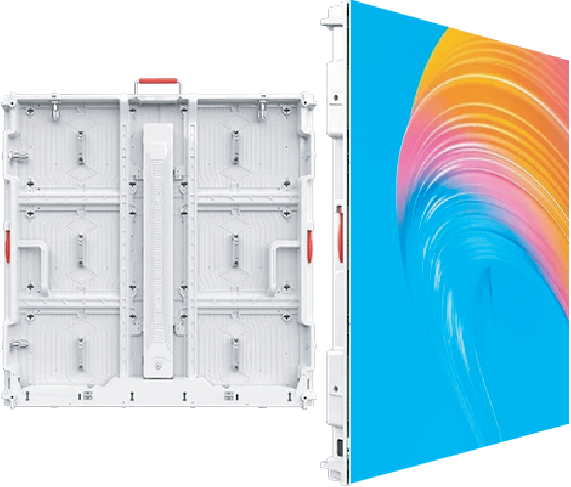

EDGE - Main

Synergy EDGE

Outdoor Video Cabinet - Front & Rear Service -
Low Power

Cabinet Sizes Available:
960 mm x 640 mm
960 mm x 960 mm
960 mm x 1280 mm

Pitch Sizes Available:
P4.44 P6.67 P10

Order (MOQ): 1

Contact Now
Features

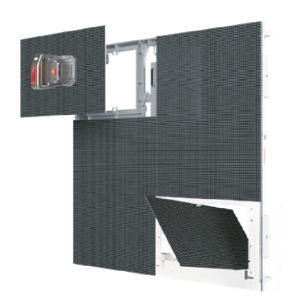

 Front and Rear Maintenance

  • The modules are serviceable from the front
    and rear of the cabinet. This gives you a
    certain flexibility to installation as well as ease
    of ongoing maintenance

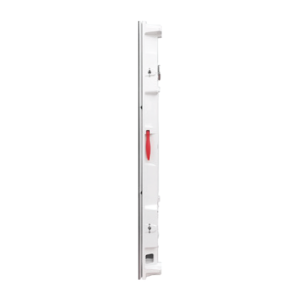

Lightweight and Slim

  • The aluminium modules and cabinet are
    extremely light, weighing only 26Kg
  • The cabinet has an extremely slim design at
    only 85mm depth

Cabinets

The standard cabinet sizes are:

  • 960 x 960mm
  • 960 x 640mm
  • The cabinets are of aluminium construction
    with die-cast aluminium module design.
  • Dual layer power supply for heat dissipation

Better Image Quality

  • High Refresh Rate - Giving a much sharper image
  • High Grayscale - Better contrast within the image

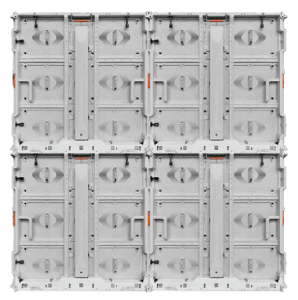

Seamless Joining

  • Fast lock - Easily and quickly locate and lock adjacent cabinets with advanced locking system.
  • Side and top handles to make it easier to manoeuvre the cabinets

Energy Saving

  • The modules have a lower power consumption when compared with similar products on the market the power saving is over 40%
Specification

Product Specification - 960 x 960mm Cabinet

Specification – 4.44mm Pixel Pitch

  • LED Lamp: SMD1921

  • Density: 50,625 dots/m²

  • Brightness: ≥4500 nits

  • IP Rating: IP66

  • Cabinet Material: Aluminium Profile

  • Refresh Ratio: 3840 Hz

  • IC Driving: 1/9

  • Module Weight: 2 kg

  • Cabinet Weight: 26 kg

  • Module Size: 480 × 320 × 15 mm

  • Cabinet Size: 960 × 960 × 85 mm

  • Modules per Cabinet: 2 × 3

  • Cabinet Area: 0.92 m²

  • Module Resolution: 108 × 72 dots

  • Cabinet Resolution: 216 × 216 dots

  • Max Power: 550 W/m²

  • Average Power: 185 W/m²

  • Viewing Angle: H-140° / V-140°

  • Control Method: Synchronous / Asynchronous

  • Grayscale: 16 bit

  • Operating System: AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI

  • Working Humidity: 10% – 90%

  • Working Temperature: -20°C ~ +65°C

  • Lifespan: 100,000 hours

Specification – 6.67mm Pixel Pitch

  • LED Lamp: SMD2727

  • Density: 22,500 dots/m²

  • Brightness: ≥7000 nits

  • IP Rating: IP66

  • Cabinet Material: Aluminium Profile

  • Refresh Ratio: 3840 Hz

  • IC Driving: 1/6

  • Module Weight: 2 kg

  • Cabinet Weight: 26 kg

  • Module Size: 480 × 320 × 15 mm

  • Cabinet Size: 960 × 960 × 85 mm

  • Modules per Cabinet: 2 × 3

  • Cabinet Area: 0.92 m²

  • Module Resolution: 72 × 48 dots

  • Cabinet Resolution: 144 × 144 dots

  • Max Power: 550 W/m²

  • Average Power: 185 W/m²

  • Viewing Angle: H-140° / V-140°

  • Control Method: Synchronous / Asynchronous

  • Grayscale: 16 bit

  • Operating System: AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI

  • Working Humidity: 10% – 90%

  • Working Temperature: -20°C ~ +65°C

  • Lifespan: 100,000 hours

Specification – 10mm Pixel Pitch

  • LED Lamp: SMD2727 / 3535

  • Density: 10,000 dots/m²

  • Brightness: ≥7000 nits

  • IP Rating: IP66

  • Cabinet Material: Aluminium Profile

  • Refresh Ratio: 3840 Hz

  • IC Driving: 1/2

  • Module Weight: 2 kg

  • Cabinet Weight: 26 kg

  • Module Size: 480 × 320 × 15 mm

  • Cabinet Size: 960 × 960 × 85 mm

  • Modules per Cabinet: 2 × 3

  • Cabinet Area: 0.92 m²

  • Module Resolution: 48 × 22 dots

  • Cabinet Resolution: 96 × 96 dots

  • Max Power: 550 W/m²

  • Average Power: 185 W/m²

  • Viewing Angle: H-140° / V-140°

  • Control Method: Synchronous / Asynchronous

  • Grayscale: 16 bit

  • Operating System: AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI

  • Working Humidity: 10% – 90%

  • Working Temperature: -20°C ~ +65°C

  • Lifespan: 100,000 hours

Specifications are subject to change
